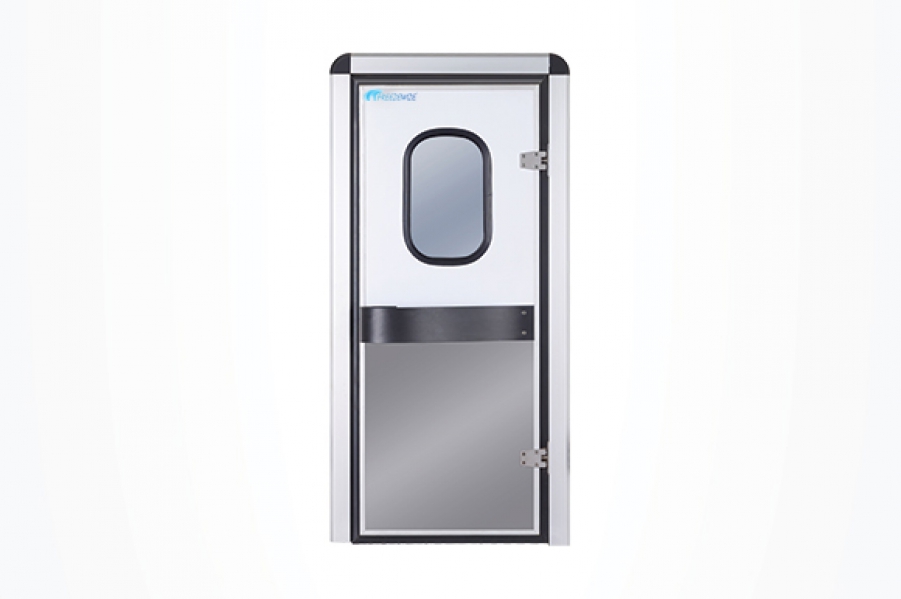

Swinging Cooler Door
The Swinging Cooler Door is an industrial cold storage door designed for walk-in coolers, commercial cold rooms, temperature-controlled storage areas, plus high-traffic refrigeration facilities. Built for quick access, strong insulation, daily impact resistance, this Swinging Cooler Door supports stable cold room performance while improving movement in busy working environments.
In supermarkets, food processing plants, dairy facilities, distribution warehouses, logistics cold chain centers, a swinging cooler door must handle constant personnel flow, carts, pallet movement, frequent product transfer. If the swinging cooler door does not close properly or resist impact, cold air loss, temperature fluctuation, condensation, energy waste, higher refrigeration load can become serious operational problems.
The Swinging Cooler Door is designed with a dual-action swinging mechanism that allows smooth two-way access without slowing down daily workflow. This swinging structure helps staff move efficiently through cold room entrances while supporting internal temperature stability. Its insulated core helps reduce heat transfer, protect stored products, improve energy-efficient cooler operation.
Manufactured with reinforced structural components, durable surface materials, reliable sealing details, the Swinging Cooler Door provides long-term performance in demanding industrial refrigeration environments. The design is compatible with modular cold room panel systems, reinforced insulated panels, turnkey cold storage projects using region-appropriate refrigerant supply.
Freezewize Cooling System develops each Swinging Cooler Door for commercial cooler rooms, walk-in coolers, food storage areas, cold chain logistics facilities, industrial refrigeration projects in the United States, Europe, Africa, the Middle East. For businesses seeking a durable, efficient, practical swinging door solution, the Swinging Cooler Door offers reliable cold storage performance.
| Specifications | Technical details |
|---|---|
| Door type | Double-action swing door for cold rooms |
| Application | Cold room / Refrigerated room / Commercial refrigeration |
| Insulating core | High-density polyurethane foam |
| Insulation density | 40–45 kg/m³ |
| Thermal conductivity (λ) | ≤ 0.022 W/m·K |
| Door thickness options | 40 mm (1.57 in) / 60 mm (2.36 in) / 80 mm (3.15 in) |
| R-value (40 mm) | R-10 (ft²·°F·h/BTU) |
| R-value (60 mm) | R-15 |
| R-value (80 mm) | R-20 (high performance standard for chillers) |
| U-value (80 mm) | Approximately 0.28 W/m²K |
| Surface options | Impact-resistant PVC / Pre-coated steel / Stainless steel |
| Opening angle | Up to 180° bidirectional |
| Hinge system | Robust spring or cam hinge |
| Sealing system | Flexible seal system |
| Frame material | Aluminum or stainless steel |
| Operating temperature range | +2°C to +10°C (35.6°F to 50°F) |
| Impact resistance | Reinforced structure for heavy industrial use |
| Air tightness | Flexible multi-point thermal seal |
| Compatibility | Suitable for systems manufactured with a refrigerant supply adapted to the region |
| Custom production | Fully customizable to project requirements |
