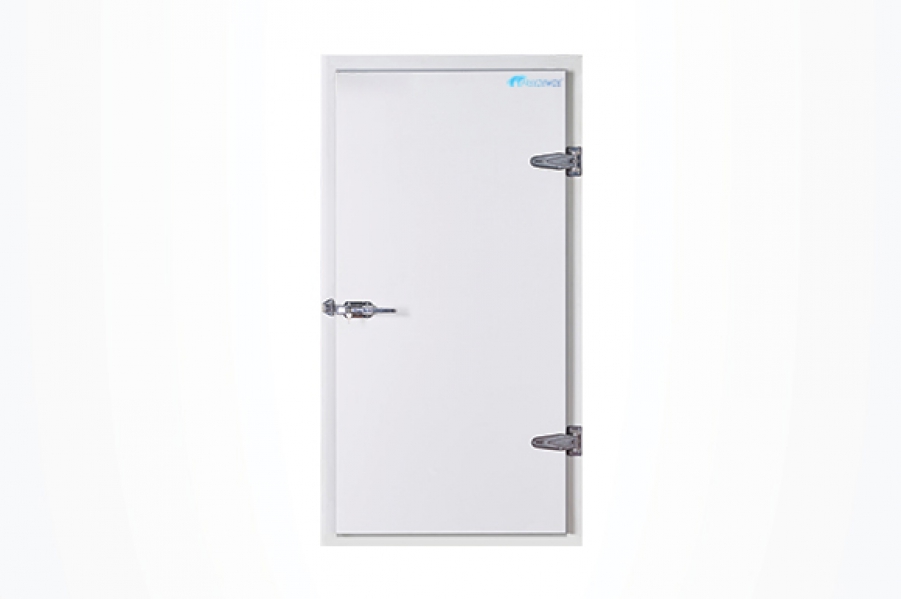

Hinged Cold Room Door
The Hinged Cold Room Door is a heavy-duty, insulated hinged door designed for cold storage facilities, freezing rooms, seafood processing areas, fish storage facilities, and low-temperature food production environments. Built on a durable hinge structure, the Hinged Cold Room Door supports reliable cold room insulation, moisture resistance, hygienic operation, and long-term industrial performance.
In demanding cold room applications, the hinge mechanism plays a critical role in daily access. A weak hinged door or a frame with insufficient sealing can lead to air leakage, condensation, moisture buildup, temperature fluctuations, and increased cooling loads. For seafood processing facilities, fish freezing rooms, humid cold storage areas, and industrial cold room projects, a reliable hinged design supports cold room efficiency while helping to maintain hygiene standards.
The Hinged Cold Room Door is manufactured with high-density polyurethane insulation to help maintain consistent cold room temperatures. The reinforced insulated door panel supports thermal performance, while the hinged sealing system reduces air leakage around the door opening. The hinged construction ensures smooth operation in high-traffic cold storage areas where frequent opening cycles are part of daily workflow.
Designed for industrial use, the hinged hardware features corrosion-resistant surfaces, a reinforced hinged frame, and durable sealing details, helping the Hinged Cold Room Door perform effectively in humid or salty environments. This feature makes the door suitable for seafood processing plants, fish freezing rooms, cold chain distribution centers, and industrial refrigeration projects.
Freezewize Cooling System develops each Hinged Cold Room Door for modular cold room panel systems and turnkey cold storage projects using refrigerant supply tailored to the region. For facilities requiring a robust, hygienic, and highly thermally efficient hinged solution, the Hinged Cold Room Door delivers reliable and long-term hinged cold room door performance.
| Specification | Technical details |
|---|---|
| Door type | Refrigerator door with hinges (single or double) |
| Application | Ice room / Fish processing / Cold storage |
| Insulation core | High-density polyurethane foam |
| Insulation density | 40–45 kg/m³ |
| Thermal conductivity (λ) | ≤ 0.022 W/m·K |
| Door thickness options | 60 mm (2.36 inches) / 80 mm (3.15 inches) / 100 mm (3.94 inches) |
| R-value (60 mm) | R-15 (ft²·°F·hr/BTU) |
| R-value (80 mm) | R-20 |
| R-value (100 mm) | R-25 (high-performance cooling standard) |
| U-value (100 mm) | Approx. 0.22 W/m²K |
| Surface options | AISI 304 stainless steel / corrosion-resistant coated steel |
| Frame construction | Insulated aluminum or stainless steel |
| Hinge system | Heavy-duty, adjustable industrial hinges |
| Sealing system | Flexible magnetic seal with moisture-resistant gasket |
| Operating temperature range | 0 °C to +10 °C (32 °F to 50 °F) |
| Moisture protection | Corrosion-resistant hardware and condensation-controlled design |
| Air tightness | Multi-point thermal seal system |
| Custom manufacturing | Fully customizable to project requirements |
