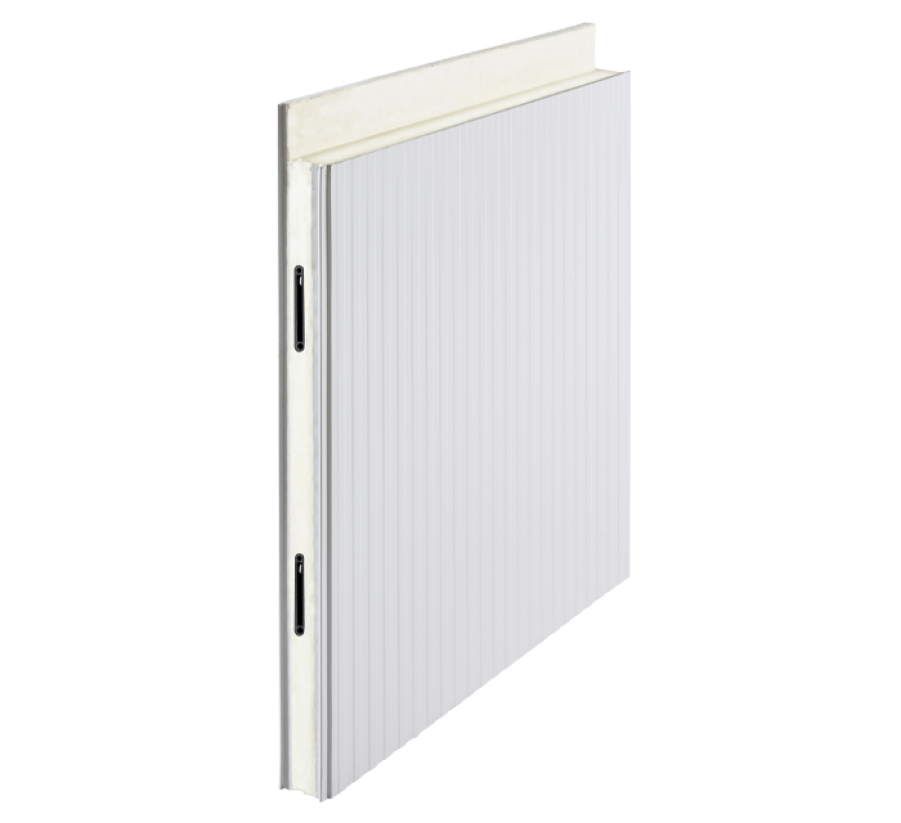

Cam Locked Cold Room Panel
The Cam-Lock Cold Room Panel is a high-performance insulated sandwich panel system designed for walk-in coolers, walk-in freezers, industrial cold rooms, plus large-scale cold storage facilities. Built around a secure Cam-Lock fastening structure, this panel system supports fast modular installation, strong thermal insulation, airtight connection, plus long-term structural reliability.
In cold storage construction, panel connection quality directly affects insulation continuity, energy efficiency, temperature stability, air sealing, plus overall cold room performance. A weak joint can create thermal bridges, air leakage, condensation risk, higher refrigeration load, or long-term structural problems. The Cam-Lock system helps reduce these risks by locking each panel tightly from inside the structure, creating a clean, stable connection between insulated panels.
Each Cam-Lock Cold Room Panel is manufactured with high-density polyurethane insulation plus durable outer steel surfaces to support high R-value thermal performance in refrigerated or frozen environments. The Cam-Lock mechanism improves panel alignment during installation, helping contractors build cold rooms faster while maintaining insulation continuity across walls, ceilings, corners, plus connection points.
Freezewize Cooling System develops each Cam-Lock Cold Room Panel for food processing facilities, logistics warehouses, supermarkets, pharmaceutical storage areas, cold chain distribution centers, industrial refrigeration projects. The Cam-Lock panel design integrates with cold room doors, cooling systems, modular accessories, plus facilities using region-appropriate refrigerant supply.
For projects where installation speed, insulation performance, structural flexibility, energy efficiency, plus reliable panel connection must work together, the Cam-Lock Cold Room Panel provides a practical Cam-Lock insulated panel solution for durable cold storage construction.
| Specification | Technical details |
|---|---|
| Panel type | Modular cold room panel with cam lock |
| Application | Walk-in cold room / Walk-in freezer room / Industrial cold room |
| Insulation core | High-density polyurethane foam |
| Insulation density | 40–45 kg/m³ |
| Thermal conductivity (λ) | ≤ 0.022 W/m·K |
| Panel thickness options | 80 mm (3.15 inches) / 100 mm (3.94 inches) / 120 mm (4.72 inches) / 150 mm (5.91 inches) / 200 mm (7.87 inches) |
| R-value (80 mm) | R-20 (ft²·°F·hr/BTU) |
| R-value (100 mm) | R-25 |
| R-value (120 mm) | R-30 |
| R-value (150 mm) | R-38 |
| R-value (200 mm) | R-50 (high-performance freezer standard) |
| U-value (200 mm) | Approx. 0.11 W/m²K |
| Surface material | Pre-painted galvanized steel / stainless steel |
| Panel connection system | Internal cam lock fastening system |
| Joint sealing | Air-tight insulation seal |
| Panel width | Standard 1000 mm (39.37 inches) Modular panels |
| Panel height | Customizable depending on the project |
| Operating temperature range | +5 °C to -40 °C (41 °F to -40 °F) |
| Fire protection class | Optional fireproof panel system |
| Installation | Quick modular assembly with cam lock connection |

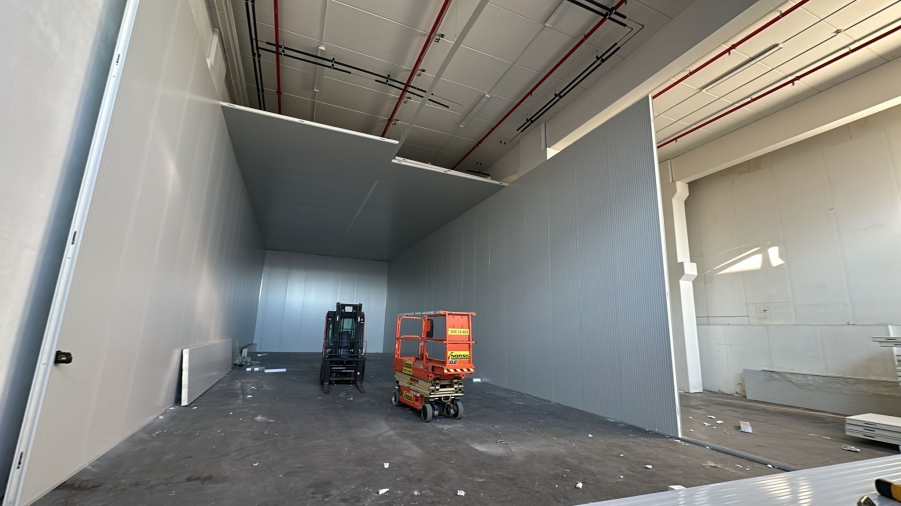

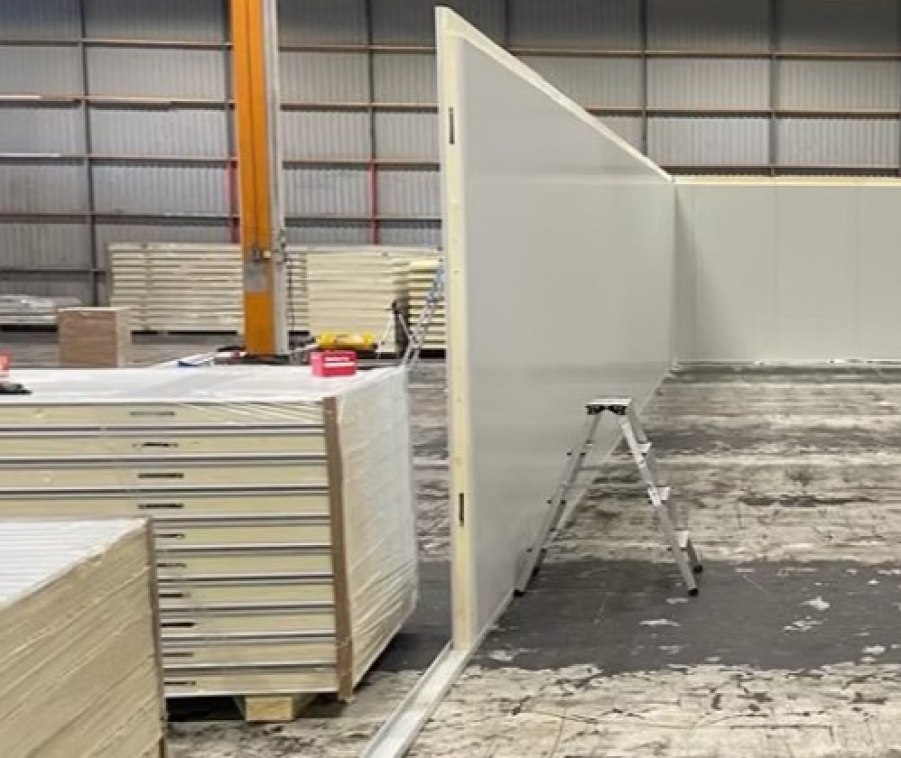

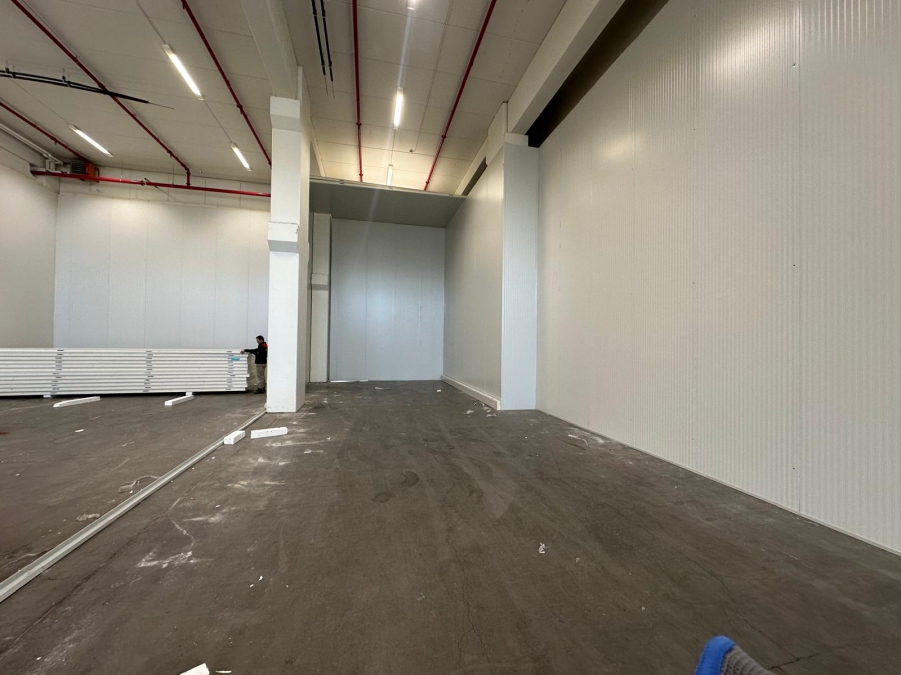

Gallery
