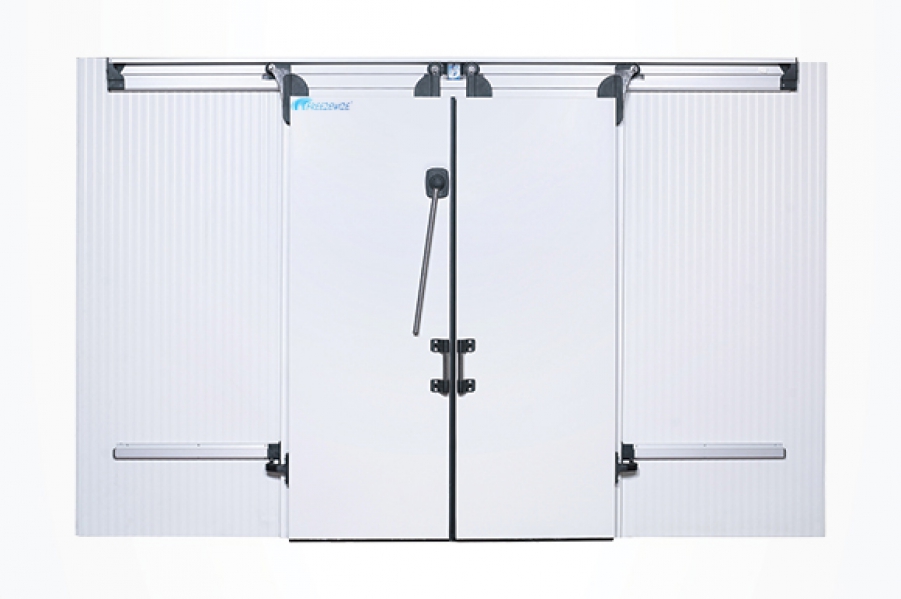

Cooler Bi-Parting Sliding Door
Freezewize Cooler Bi-Parting Sliding Door is a high-performance industrial cold room sliding door designed for walk-in coolers, temperature-controlled storage facilities, and commercial cold storage environments that require reliable insulation and seamless access control. As a heavy-duty double-wing sliding cooler door and insulated cold storage door system, it is specifically designed for industrial refrigeration projects where energy efficiency, hygiene standards, and operational durability are critical. This industrial sliding cold room door is widely used in food processing plants, supermarket cold rooms, logistics warehouses, distribution centers, and pharmaceutical storage facilities seeking a space-saving and thermally efficient cold room door solution.
The two-part sliding mechanism allows both door panels to open horizontally from the center, minimizing air leakage while optimizing workflow in industrial environments with heavy traffic. This design significantly reduces temperature fluctuations and supports energy-efficient cold room performance. The Cooler Bi-Parting Sliding Door provides reliable and consistent operation in facilities where interior optimization and thermal stability are important.
Manufactured with high-density polyurethane insulation and reinforced structural components, the system provides advanced thermal resistance and long-term durability. The precision sliding rail system ensures smooth, low-friction movement even under heavy industrial use. As a trusted cold room door manufacturer, Freezewize designs each sliding refrigeration door for seamless integration into modular cold room panel systems and turnkey industrial cold storage projects.
The door system is compatible with cold storage facilities produced with a refrigerant source suitable for the region and designed to meet international hygiene, safety, and industrial standards in the United States, Europe, Africa, and the Middle East.
| Feature | Technical Details |
|---|---|
| Door Type | Two-Piece Horizontal Sliding Refrigerator/Freezer Door |
| Application | Cold Room / Walk-In Refrigerator / Walk-In Freezer |
| Insulation Core | High-Density Polyurethane Foam |
| Insulation Density | 40–45 kg/m³ |
| Thermal Conductivity (λ) | ≤ 0.022 W/m·K |
| Door Thickness Options | 60 mm (2.36 inches) / 80 mm (3.15 inches) / 100 mm (3.94 inches) / 120 mm (4.72 inches) |
| R-Value (60 mm) | R-15 (ft²·°F·hr/BTU) |
| R-Value (80 mm) | R-20 |
| R-Value (100 mm) | R-25 |
| R-Value (120 mm) | R-30 (High-Performance Industrial Standard) |
| U-Value (120 mm) | Approximately 0.18 W/m²K |
| Surface Options | Pre-painted Galvanised Steel / Stainless Steel AISI 304 |
| Sliding Mechanism | Heavy-Duty Ceiling Track System |
| Sealing System | Multi-Point Compression Gasket with Optional Heated Gasket |
| Frame Material | Insulated Aluminium or Stainless Steel |
| Operating Temperature Range | +2°C to -40°C (35.6°F to -40°F) |
| Air Tightness | High-Performance Thermal Sealing System |
| Automation Option | Manual or Motorised Sliding System Available |
| Compatibility | Suitable for Systems Manufactured with a Refrigerant Source Suitable for the Region |
| Custom Production | Fully customisable according to project requirements |
