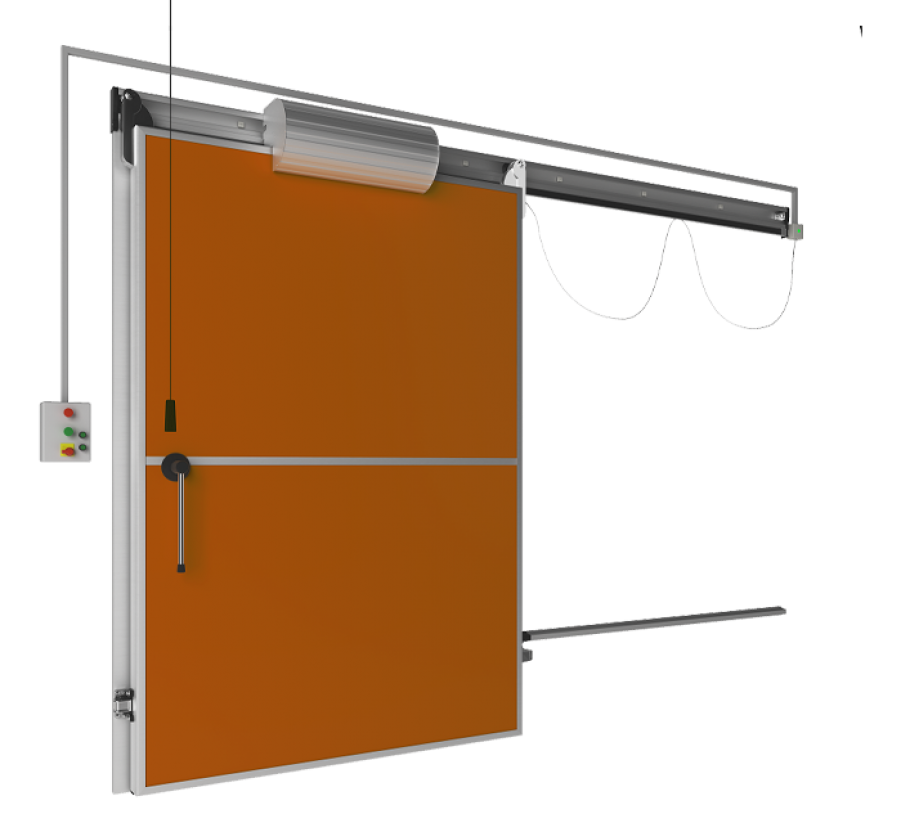

Automatic Sliding Freezer Door

The Automatic Sliding Cold Room Door is an industrial insulated door designed for walk-in coolers, walk-in freezers, food processing plants, logistics warehouses, distribution centers, pharmaceutical cold storage facilities, plus high-capacity cold chain operations. Built for fast access, hygiene control, temperature stability, reduced manual handling, this Automatic Sliding Cold Room Door supports efficient movement in high-traffic cold room environments.

In busy industrial refrigeration areas, manual doors can slow workflow, increase air leakage time, create unnecessary contact points. The Automatic Sliding system solves these issues with motorized operation through button panels, motion sensors, or remote control systems. This Automatic Sliding movement allows quick access while helping reduce cold air loss, temperature fluctuation, condensation risk, plus refrigeration load.

The Automatic Sliding Cold Room Door is manufactured with a reinforced insulated door leaf and high-density polyurethane insulation to support strong thermal resistance. Its precision-engineered rail and drive system provide smooth Automatic Sliding operation during intensive daily cycles. This Automatic Sliding structure makes the door suitable for demanding industrial cold storage environments where speed, insulation, reliability are essential.

Freezewize Cooling System develops each Automatic Sliding Cold Room Door for modular cold room panel systems, turnkey refrigeration projects, facilities using region-appropriate refrigerant supply. The Automatic Sliding design supports hygienic access, safer workflow, reduced hand contact, consistent door movement, plus long-term industrial performance.

For operations where Automatic Sliding access, Automatic Sliding performance, cold room insulation, workflow efficiency, temperature stability, long-term durability must work together, the Automatic Sliding Cold Room Door provides a smart, energy-efficient solution for modern cold storage facilities.

General Technical Specifications



SpecificationsTechnical details
Door typeAutomatic horizontal sliding door for cold rooms
ApplicationCold room / Freezer / Industrial cold storage warehouse
Insulation coreHigh-density polyurethane foam
Insulation density40–45 kg/m³
Thermal conductivity (λ)≤ 0.022 W/m·K
Door thickness options80 mm (3.15 in) / 100 mm (3.94 in) / 120 mm (4.72 in) / 150 mm (5.91 in)
R-value (80 mm)R-20 (ft²·°F·h/BTU)
R-value (100 mm)R-25
R-value (120 mm)R-30
R-value (150 mm)R-38 (standard for high-performance freezers)
U-value (150 mm)Approximately 0.15 W/m²K
Surface optionsPre-coated galvanized steel / AISI 304 stainless steel
Drive systemIndustrial electric motor with gear system
Control optionsPush button / Motion sensor / Remote control
Sealing systemMagnetic seal with optional heating frame
Frame constructionInsulated aluminum or stainless steel
Operating temperature range+2°C to -40°C (35.6°F to -40°F)
Opening speedAdjustable (configuration depending on the project)
Safety systemObstacle detection and manual emergency unlocking
Automation cycleDesigned for high-frequency industrial use
CompatibilitySuitable for systems manufactured with a refrigerant supply adapted to the region
Custom productionFully customizable according to project dimensions
