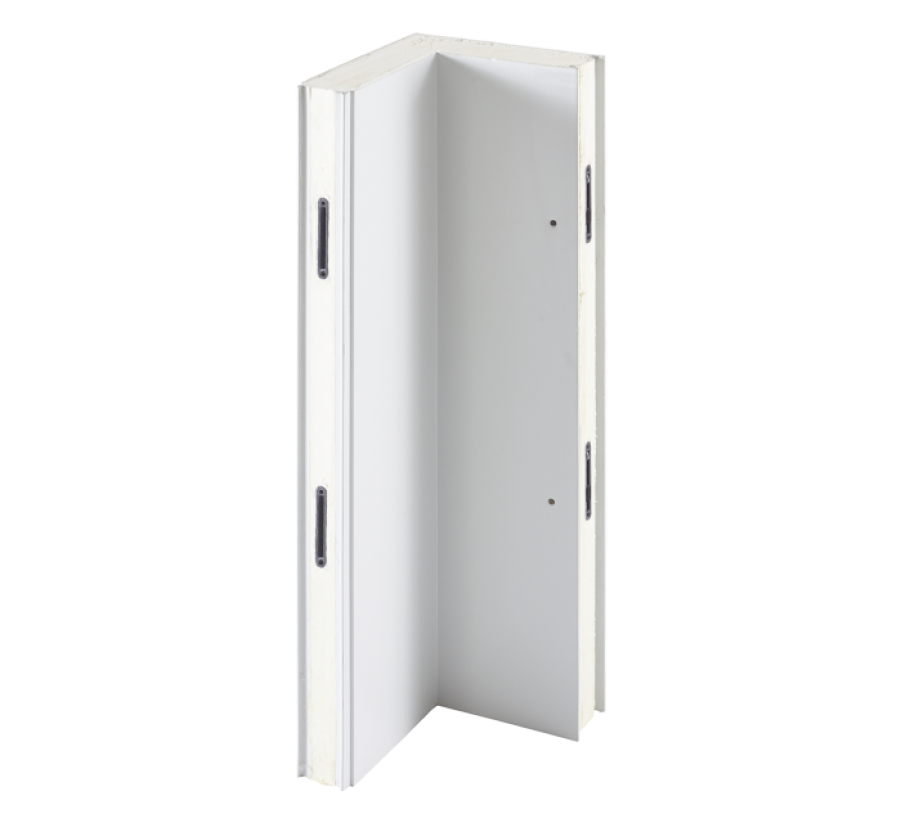

Cold Room Corner Panel
Freezewize Cold Room Corner Panel is a specialized insulation panel designed to create seamless and thermally efficient corner connections in modular cold storage units. Designed for walk-in coolers, walk-in freezers, and industrial cold storage facilities, this corner panel provides continuous insulation at structural intersection points while maintaining airtight sealing and structural stability. As an insulated corner solution for cold room construction, it supports reliable temperature control in temperature-controlled environments and high R-value thermal performance.

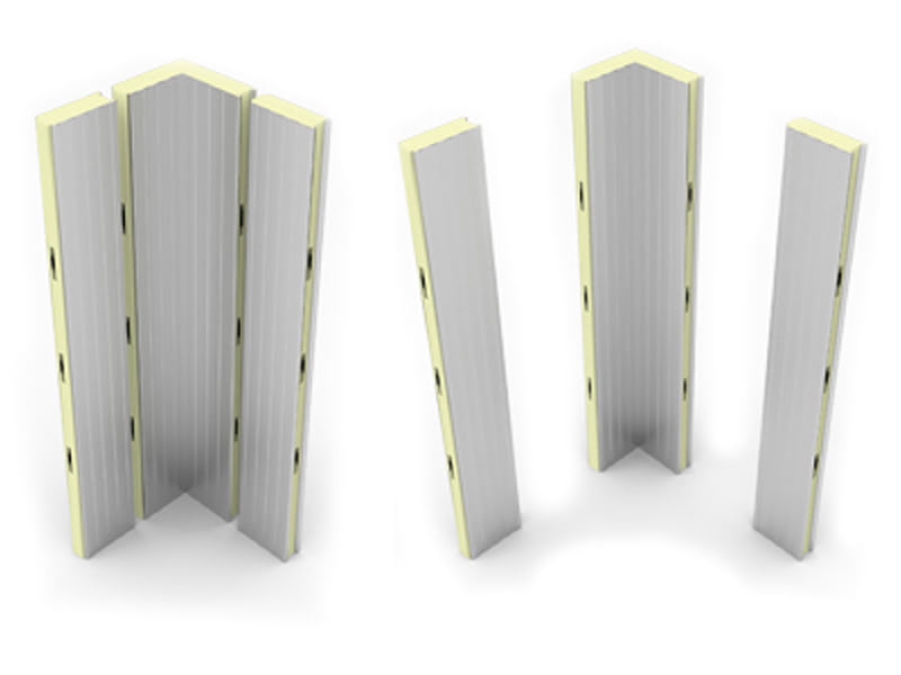

In cold storage facilities, corner areas are critical points where insulation continuity must be maintained to prevent thermal bridges and energy loss. The Freezewize corner panel is designed to connect wall panels at precise angles, creating smooth structural transitions while maintaining the same insulation performance as standard cold room panels. This design enhances the overall thermal efficiency of the cold storage facility and supports stable internal temperatures in both refrigeration and freezing applications.
Manufactured with high-density polyurethane insulation and durable steel surface materials, the corner panel provides structural strength and long-term durability. The smooth panel surface supports hygienic cleaning procedures and makes it suitable for food processing facilities, pharmaceutical storage areas, and industrial cold chain environments.

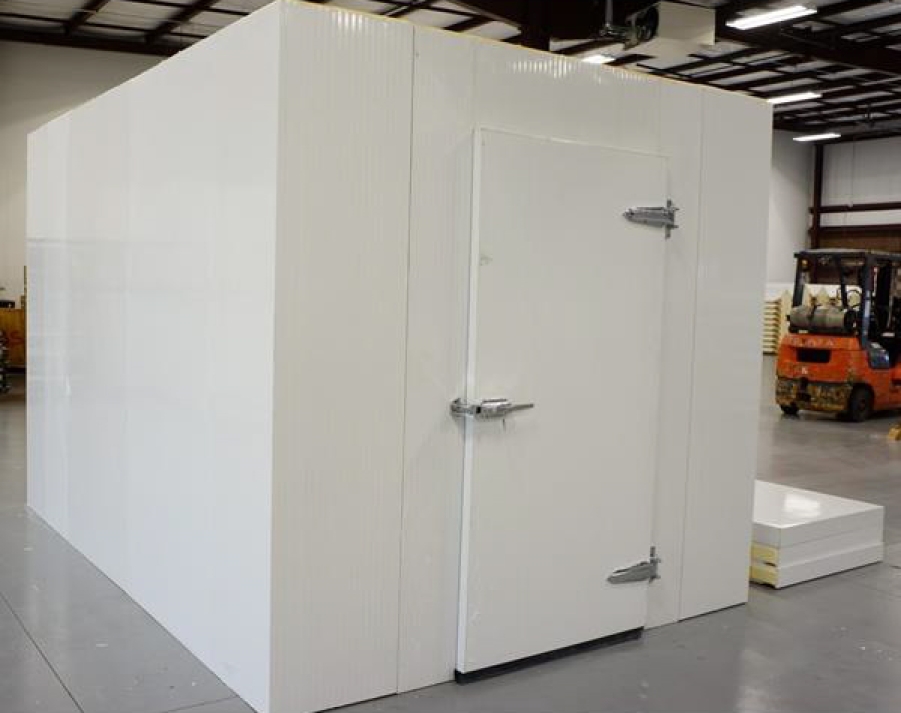

When integrated with modular cold room panels, doors, and floor systems, the Cold Room Corner Panel helps create a fully insulated cold air storage enclosure designed for facilities compliant with international cold chain standards, produced with a refrigerant source suitable for the region.
In cold storage construction projects where insulation continuity, structural accuracy, and hygienic surfaces are required, this corner panel offers a reliable and thermally efficient solution for modern refrigeration facilities.
| Specifications | Technical details |
|---|---|
| Panel type | Corner panel for cold rooms |
| Application | Cold room / Freezer / Industrial cold storage warehouse |
| Insulating core | High-density polyurethane foam |
| Insulation density | 40–45 kg/m³ |
| Thermal conductivity (λ) | ≤ 0.022 W/m·K |
| Panel thickness options | 80 mm (3.15 in) / 100 mm (3.94 in) / 120 mm (4.72 in) / 150 mm (5.91 in) |
| R-value (80 mm) | R-20 (ft²·°F·hr/BTU) |
| R-value (100 mm) | R-25 |
| R-value (120 mm) | R-30 |
| R-value (150 mm) | R-38 |
| U-value (150 mm) | Approximately 0.15 W/m²K |
| Surface material | Pre-coated galvanized steel / stainless steel |
| Panel assembly system | Panels connected by male-female interlocking system |
| Corner configuration | 90° insulated structural corner panel |
| Operating temperature range | +5°C to -40°C (41°F to -40°F) |
| Compliance with hygiene standards | Suitable for HACCP and food processing environments |
| Custom production | Custom sizes available depending on cold room design |
